MotoGP wings analysis

Then of MotoGP season 2016 where the all motorbikes y all categories was mount wings.

Today is banned, but I'd like on resume of simple analysis of effects and how it works.

I am sure  that in the future the aerodynamics into motorbike have more weight in the design, the aerodynamics is not high relevant value, but in one world, where each tenth could be mark win or lose one race, aerodynamics can provide this tenth.

Aerodynamics basic concepts

Angle of Attack

The main effect is the angle between air and profile depend lifts generate, until one point where profile lost lift and only provide more drag, (stall angle)
Angle of Attack

Lift and Drag Equations


D is the drag force, which is by definition the force component in the direction of the flow velocity
L is the lift force, which is by definition the force component in the perpendicular of the flow velocity
  is the air mass density  1.205kg/m3.
v is the flow velocity (motorbike speed).
A is the reference area, (wings surface).
Cd is the drag coefficient provide for NACA profile data.
Cl  is the drag coefficient provide for NACA profile data.

For calcule I used information with NACA profiles (this information is public in NASA webs)


Aerodynamic analysis


Wing analysis


Ducati GP16 courtesy from Ducati
I estimate several measures

  • Wheelbase 1400mm
  • Rear SAG with pilot 30mm
  • Fork travel 110mm
  • Pitch full brake (fork fully compressed, rear wheel without load, rearshock extended) 5.7º
  • Wing area 250mm x 100mm
Ducati GP13 braking


In the front part I used a thin profile NACA 65-206. This enter in stall quickly and provide low lift (Cl < 1) (down force) and low drag, this wing was used for Yamaha YZF-M1

  • Straight mode with motorbike with full gas we put the Angle of attack (AoA) 6º
  • In full brake the motorbike pitch 5.7º, therefore the AoA is 11.7º
NACA 65-206 charts
With 11.7º, this profile is in stall, this point is in brake, therefore Drag increase and provide a braking extra. The table provide the several data (10 N ~ 1 kg ~ 2.3 lb)


NACA 65-206
6,0º
11,7º
100 km/h
200 km/h
300 km/h
350 km/h
100 km/h
200 km/h
300 km/h
350 km/h
L
8,14 N
32,54 N
73,22 N
99,66 N
2,32 N
9,30 N
20,92 N
28,47 N
D
0,46 N
1,86 N
4,18 N
5,69 N
1,39 N
5,58 N
12,55 N
17,08 N


In the side part I used a thin profile NACA 6412. This provide high lift (Cl > 1) (down force) and high drag, this wing was used for Ducati GP16


  • Straight mode with motorbike with full gas we put the Angle of attack (AoA) 7.5º
  • In full brake the motorbike pitch 5.7º, therefore the AoA is 13.2º
NACA 6412 charts
With 13.2º, this profile provide more lift, this point is in brake, therefore provide more force to tyres (like a weight) and provide a braking extra. The table provide the several data (10 N ~ 1 kg ~ 2.3 lb)

NACA 6412
7,5º
13,2º
100 km/h
200 km/h
300 km/h
350 km/h
100 km/h
200 km/h
300 km/h
350 km/h
L
17,43 N
69,73 N
156,89 N
213,55 N
5,81 N
23,24 N
52,30 N
71,18 N
D
0,23 N
0,93 N
2,09 N
2,85 N
1,39 N
5,58 N
12,55 N
17,08 N

However, these profiles try to create less drag possible, therefore  if you have enough power to waste in drag, you could be increase the Lift forces.

For example we can increase AoA without stall and increse Lift with slots in the profile

In the F1, the top in racing aerodynamics Cl is over 3
Source Racecar Engineering
If we calculate with Cl 3

Ranurados
Cl 3
100 km/h
200 km/h
300 km/h
350 km/h
L
34,87 N
139,46 N
313,79 N
427,10 N

Each wing, generate 43kg with 350km/h, with 4 wings (one front one lateral, in each side) reach  174kg , this is the same weight of one MotoGP without rider

Behavior effects


Another effect is the rider change his position in the bike, this create changes in aerodynamics
Motorbike Magazine courtesy
In corner when the rider try to leave the bike vertical and launch his weight to turn side, it create a wall where stop the airstream, and the lateral wing lost efficiency, and the other side create a roll effect like the rider put weight in the opposite side, this effect aid to take the turn.

Other effects in in the brake the pitch increase the Drag and Lift, and this provide more capacity to brake.

The antiwheelie effect, but normally, the speed in the exit is less and this effect is not the more important, beacuse, the wheelie is stronger in short gear, and this translate to low speeds

General drag, the vortex could be create two effects

1º Low the general drag like a golf ball, locate vortex provide less general drag
Locate vortex decrease the general drag


NASA studies
2º Create a concentre vortex behind the bike, where concentrate turbulence and the motorbike behind shake by this turbulende. The air intake to engine could be affected for this tubulence. In 2016 season  riders complained for this effect

Security


The problem is if wing hit a rider in one accident or overtake. We could see that Force that must withstand so that it does not brake the fairing, therefore it must and hard part and could be injure to riders. Cruchtlow  warn this effect, and he has reason.

This is the first reason to ban the wings, other reason is cost increase due to aerodynamics studies.

In the future I will develop other post with how develop aerodynamics forces in the motorbike without wings.

jueves, 7 de julio de 2016

Why the car electro is farthest from what it seems?

Independently of engine technologies, substitute engine must provide the same service that actual engines. The electric engine could be reach the power of ICE (internal Combustion Engine).

We take like base a VW Polo 1.2



  • Fuel consumption (town) 5.8 L/100km
  • Fuel consumption (highway) 4.1 L/100km
  • Average fuel consumption 4.7 L/100km
  • Engine Power kW 81 kW
  • Average trip with full tank 1125 km (703 miles)
  • Weight 1163 kg

We need to compare with fossils fuels, mainly isoctane (petrol) that have 11,778 Wh/kg; 42.4 MJ/kg. but in this case we set efficiency around 30%.


Internal Combustion Engine
Pretol
Energy
42.4 MJ/kg
Density
0.748kg/L
η
30.00%
Consumption each 100 kms
4.10 L
100 kms
3.06 kg
Energy Consumption 100 kms (EPetrol)
129.9 MJ
Energy used in 100 kms (EPetrol η)
39.0 MJ



If we suppose 1,125 kms with constant speed without energy recovery possibility, we need (39MJ/100kms x 11.25kms) 438.56 MJ to move the car this distance and we could use this value like standard.

Batteries technologies

BATTERIES
TECHNOLOGIES
MIN
MAX
Lead
30 Wh/kg
108 kJ/kg
40 Wh/kg
144 kJ/kg
Ni-Fe
30 Wh/kg
108 kJ/kg
55 Wh/kg
198 kJ/kg
Ni-Cd
48 Wh/kg
173 kJ/kg
80 Wh/kg
288 kJ/kg
Ni-Mh
60 Wh/kg
216 kJ/kg
120 Wh/kg
432 kJ/kg
Li-ion
110 Wh/kg
396 kJ/kg
160 Wh/kg
576 kJ/kg
Li-Po
100 Wh/kg
360 kJ/kg
130 Wh/kg
468 kJ/kg
Ultra Capacitor
7 Wh/kg
27 kJ/kg
7 Wh/kg
27 kJ/kg
Fuel Cell
14,400 Wh/kg
51,840 kJ/kg
33,333 Wh/kg
120,000 kJ/kg

If we take the best current batteries technology, it is the Li ion and  for use the 438.56 MJ we need 761.4 kg. This is the weight of current Polo.


Second problem is the mean life of batteries the batteries life is around 200 cycles of 2.5 years, (guarantee power > 90%). Several test show that the life is 8 years, and one packet batteries is $8,000-$12,000.


The other problem is the  manipulation conditions, the voltages maximum should not exceed 50-60V. Several regulations and mechanics without experience with high voltage electrical systems, we should think in secure manipulation for this workers.

Making numbers

Our model of Engine Power is 81 kW with 50-60V we need 1,620-1,350 A and the maximum power.



In the 1,125kms, if we suppose the constant speed 100km/h is 11.25h or 675 min or 40500 s, therefore if we use 438.56 MJ, the engine should provide 10.8 kW meanwhile we keep constant speed. 10.8 kW with 50-60V we need 217-180 A.


The losses in electric system mainly is heat losses to internal resistance:

The internal resistance of one cell is near of 0.03 ohms.


Range
1125 kms
438,6 MJ
Average Speed
100,0 km/h
Time
40500 s
Power for 100 km/h
10,8 kW
Voltage
50,0 V
60,0 V
Current
217 A
180 A
Internal resistance
0,03 Ω
Internal losses
1,41 kW
0,98 kW
12,99%
9,02%

The internal losses is a problem near of 10% of losses therefore, the efficiency is now  90%, but it is following 3 times more efficiency than ICE.

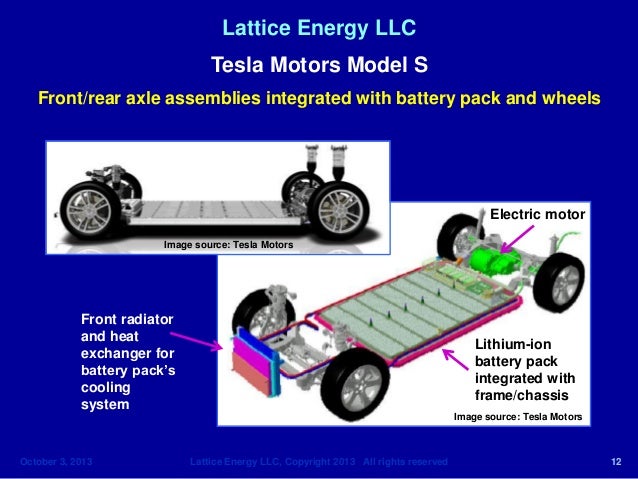

Everybody have contact with this fact, for example when we charge or use laptops, tablet, mobiles or smartphones... any PED (Portable Electronic Device) with batteries, we feel how it is heated, hence we can think, that cell packs need refrigeration systems in the electric cars, due to size.

Lattice Energy LLC slide
But we calculate with maximum power, the losses are increased exponentially.


Max power
81,0 kW
Voltage
50,0 V
60,0 V
Current
1620 A
1350 A
Internal resistance
0,03 Ω
Internal losses
78,7 kW
54,6 kW
97,20%
67,50%


However batteries, is a cell packs and depend how we make the packet


Each pack is compound by several cells
Cell element
3,7 V
12,00 Ah
0,25 kg
30,00 mΩ

 Cells is connected in serial and parallel circuit, and we can calculate more aproximation to real datas.
Cell pack
Series cells
14 S
17 S
Parallel cells
135 P
113 P
Num cells
1890 Cells
1921 Cells
Weight pack
480,38 kg
488,25 kg
Voltaje pack
51,8 V
62,9 V
Capacity pack
1620 Ah
1356 Ah
Ampere pak
1620 A
1356 A
Energy pack
302,10 MJ
307,05 MJ
Max Range pack
775 kms
788 kms
Power 1hour
83,92 kWh
85,29 kWh
Internal R Pack
3,11 mΩ
4,51 mΩ
Internal loses Max range
136 W
134 W
1,26%
1,24%
Internal loses Max power
8.165 W
8.299 W
9,73%
9,73%


We can see that the datas improve respect de last calculus, and efficiency is near 10%


Infrastructures problems



The other problems is civil installations, the electrical instalations for private use (homes).


The regulations expose mandatory near of 10kW instalations but the electrical services is not sizing for this power in all house. The Electrical Companies apply a simultaneity factors where, all consumers don't use together the max power. (this factor is important due to efficiency, if don't use near 100% of capacity, the efficiency is less)

Normally this simultaneity factor is near to 50%, and the service for electrical installations is for 5kW per house. Therefore the time to recharge is increased.

Recharge time
9kW
9h 19,4min
9h 28,6min
5kW
16h 37,3min
17h 54,2min


One solution for this problem is a Tesla Powerwall, for example where, it is charging all day and it provide the fast charge to car, when we need, like a power bank for a PED, or like a hidroelectrical dam. The problem is in each charge point need similar power that batteries car. Therefore the double batteries one in car and other in power bank (remember 760kg in lithium or 3 tonnes in lead-acid bateries).

World Lithium Reserve



This current estimate totals 28.4 billion kilograms Li, for one billion cars in the world, therefore is 28.4kg per each car, there fore this source (now mainly material for batteries), it dont have future.

Now is development other batteries technologies like Fuel cell, but now is expensive and need more development.

The future is electric car, however you dont await in next years. Maybe, the next decade.
