Arduino in Motorcycle

First at all is that the english doesn't my mother tongle and may be sure I will make a lot of fails, but a one idea is this blog for practice me english, I hope that the reader apologize me those fails, and if you wish, mark this fails in the comments.

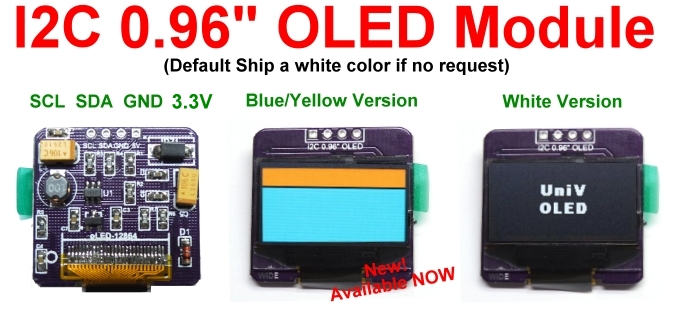

I am a proud owner of DAELIM Roadwin FI and now I connect the system  based in arduino for show in one LCD screen based in OLED 0.96" "monochrome"
The base code as drivers of the screen is https://learn.adafruit.com/096-mini-color-oled
Therefore, I should send my greetings to all forumers and his information exposed in http://arduino.cc/forum/

With this system I installed a system that it let me:

• Temperature oil
• Temperature enviroment
• Clock
• Voltage.

When detected the low or over voltaje, this value blink, and temperature oil happens the same, when it see low or over temperature.


The Arduino used is the Nano V3.0:

The code is beta (it needs any improves): <script> #include <Adafruit_ssd1306syp.h> #define SDA_PIN 9 #define SCL_PIN 8 Adafruit_ssd1306syp display(SDA_PIN,SCL_PIN); #include <Wire.h> // Incluye la librería Wire #include "RTClib.h" // Incluye la librería RTClib RTC_DS1307 RTC; float Voltage = 0; int TempOil = 0; int TempExt = 0; float Voltage1 = 0; int TempOil1 = 0; int TempExt1 = 0; unsigned long time; int hour = 0; int minute = 0; int Voltage_Pin = A0; int TempOil_Pin = A1; int TempExt_Pin = A2; int Flash = 0; int counter = 0; void setup() { delay(1000); display.initialize(); Wire.begin(); // Establece la velocidad de datos del bus I2C RTC.begin(); // Establece la velocidad de datos del RTC } void loop() { DateTime now = RTC.now(); // Obtiene la fecha y hora del RTC if( counter > 7){ Voltage = Voltage1/counter; TempOil = TempOil1/counter; TempExt = TempExt1/counter; Voltage1 = 0; TempOil1 = 0; TempExt1 = 0; counter = 0; }else{ counter++; Voltage1 = Voltage1 + float(analogRead(Voltage_Pin))*17.6/1023; TempOil1 = TempOil1 + map(analogRead(TempOil_Pin), 0, 1023, 0, 500); //LM335 TempExt1 = TempExt1 + map(analogRead(TempExt_Pin), 0, 1023, 0, 500); //LM335 } display.drawLine(63, 0, 63, 63,WHITE);//(x0,y0,x1,y1) display.drawLine(0, 32, 127, 32,WHITE);//(x0,y0,x1,y1) display.drawLine(0, 0, 127, 0,WHITE);//(x0,y0,x1,y1) display.drawLine(0, 63, 127, 63,WHITE);//(x0,y0,x1,y1) display.drawLine(0, 0, 0, 63,WHITE);//(x0,y0,x1,y1) display.drawLine(127, 0, 127, 63,WHITE);//(x0,y0,x1,y1) //display.update(); //delay(1000); //display.clear(); //Voltaje if(Voltage<12 && Flash==1 || Voltage>14.8 && Flash==1){ display.setTextColor(BLACK, WHITE); }else{ display.setTextColor(WHITE); } display.setTextSize(1); display.setCursor(10,3); display.println("Voltage"); display.setTextSize(2); display.setCursor(2,14); display.print(int(Voltage)); display.print("."); display.print(int(Voltage*10-int(Voltage)*10)); display.println("V"); //Temperature Oil if(TempOil>100 && Flash==1 || TempOil<30 && Flash==1){ display.setTextColor(BLACK, WHITE); }else{ display.setTextColor(WHITE); } display.setTextSize(1); display.setCursor(72,3); display.println("Temp Oil"); display.setTextSize(2); display.setCursor(77,14); display.print(int(TempOil)); display.println("C"); //Temperature enviroment if(TempExt>40 && Flash==1 || TempExt<10 && Flash==1){ display.setTextColor(BLACK, WHITE); }else{ display.setTextColor(WHITE); } display.setTextSize(1); display.setCursor(8,35); display.println("Temp Env"); display.setTextSize(2); display.setCursor(14,46); display.print(int(TempExt)); display.println("C"); //Temperature enviroment /*if(TempExt>40 && Flash==1){ display.setTextColor(BLACK, WHITE); }else{*/ display.setTextColor(WHITE); //} /*display.setTextSize(1); display.setCursor(8,35); display.println("Temp Env");*/ display.setTextSize(2); display.setCursor(67,40); //display.print(millis()-time); hour = (now.hour()); minute = (now.minute()); if (hour<10){ display.print("0"); } display.print(now.hour(), DEC); display.print(":"); if (minute<10){ display.print("0"); } display.print(now.minute(), DEC); /*if ((millis()-time)>5000){ second = second + .233 ; time = millis(); }else{ second = second + float(millis()-time)/1000 ; time = millis(); } if(second>=60){ second = second - 60; minute++; }*/ //display.println("C"); // //display.println(" TERRUNO"); //display.setTextColor(BLACK, WHITE); // 'inverted' text //display.println(3.141592);; //display.println(0xDEADBEEF, HEX); display.update(); //delay(500); if (Flash==1){ Flash=0; }else{ Flash=1; } display.clear(); } </script>

 The Circuit of system is this:

This is the display in the motorbike:
